Statipower® SP12 Transistorized Induction Power Supply

The Statipower® SP12 power supply is designed to match multi-turn coils (400- 2000 V) that are used for hardening, tempering, tube heating, crystal growing, brazing, wire/strip heating and many other induction heating applications. A wide variety of heating coils can be properly matched with built-in load tuning capacitors and multi-tap output isolation transformer.

Unitized Design For Stand-Alone Operation

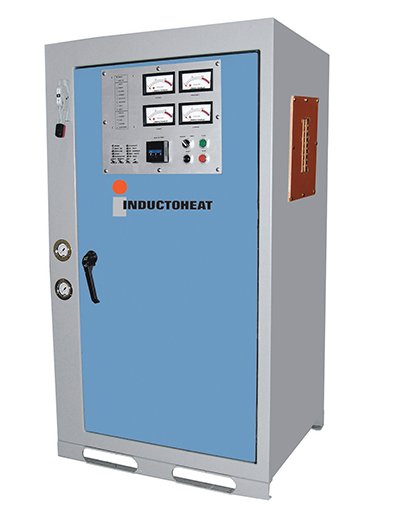

Just connect three phase 460 V input power, cooling water and heating coil and you’re ready to begin heating. The cabinets are designed to accommodate a variety of fixtures, conveyors and part handling machines. Complete stand-alone control and monitoring include Manual start/stop push buttons, heat level control with 10 turn lockable dial, four meters and annunciator lights to monitor all operating parameters.

Remote Or Computer Controlled Operation

Remote control can be accomplished by connection to the user interface provided. Heat time can be controlled by a foot switch, machine control relay or PLC. Heat level can be controlled by a remote potentiometer, 4-20 mA process control signal or analog 0-10 V signal from a PLC.

REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

  • 10 and 30 kHz with models available from 25 kW to 300 kW output
  • Rated for continuous or intermittent duty
  • Variable ratio output isolation transformer for load impedance matching
  • Internal load matching capacitors for full power operation over a wide range of load conditions
  • Input power factor is 0.95 under all operating conditions
  • Output regulation accuracy is ±1% of rated power with ±10% line variance to ensure precise process control
  • Single control board. Field replaceable without adjustment for easy maintenance
  • Remote control interface with 0-10 V or 4-20 mA remote analog input
  • Optional UNICOOL closed loop water cooling and recirculating system

Tech Specs

Electrical Output
kW Rating at Given Frequency
Physical Data
Cabinet Dimensions: in. (mm)
Ship weight Cooling Water
10 kHz 30 kHz Depth Height Width Pounds (kg) gpm (lpm)
25 25 (635) 32 (813) 28 (711) 420 (190) 4 (15)
50 30 (762) 68 (1727) 36 (914) 770 (349) 7 (26)
75 30 (762) 68 (1727) 36 (914) 770 (349) 14 (53)
100 30 (762) 68 (1727) 36 (914) 850 (385) 14 (53)
150 150 30 (762) 80 (2032) 42 (1067) 1600 (726) 18 (68)
200 200 30 (762) 80 (2032) 42 (1067) 1800 (816) 22 (83)
225 30 (762) 80 (2032) 42 (1067) 1800 (816) 24 (91)
300 300 30 (762) 80 (2032) 42 (1067) 1800 (816) 26 (98)
300 36 (914) 90 (2286) 72 (1829) 2100 (953) 26 (98)
