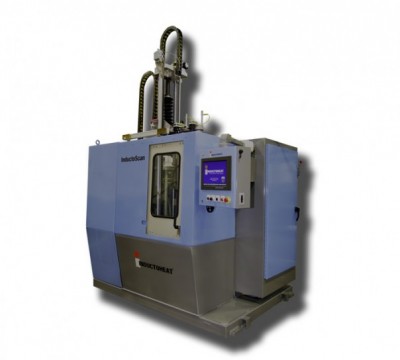

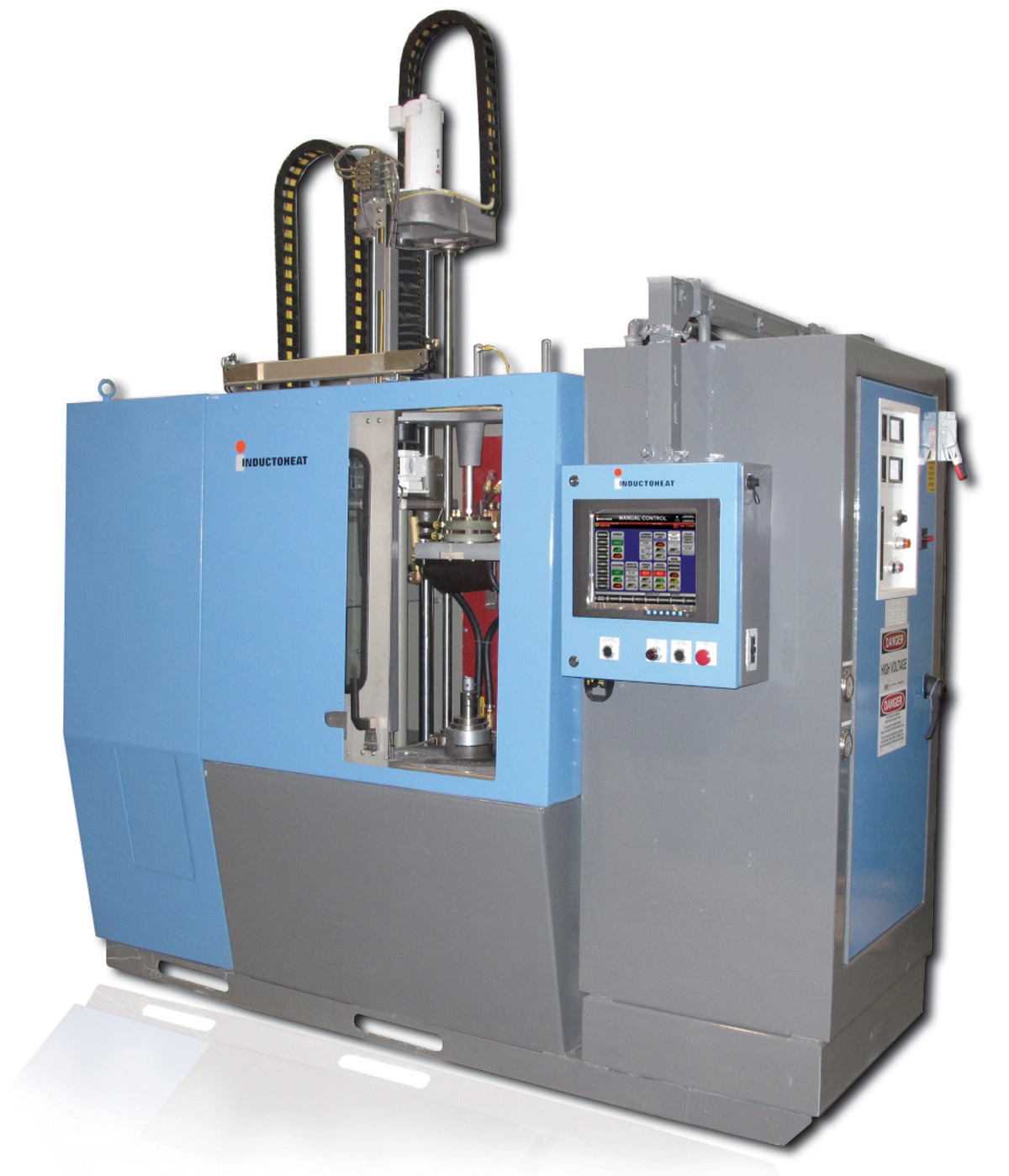

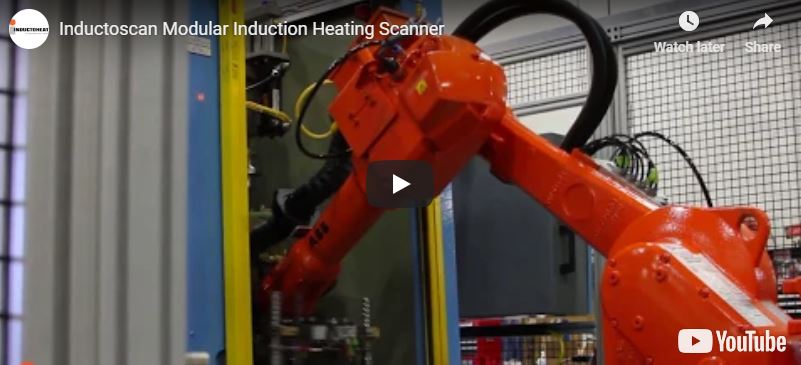

Inductoscan® Induction Heat Treating Scanning System

The Inductoscan® Induction Heat Treating Scanning System is a unique induction heat treating solution. It accommodates a wide range of power supplies, multiple spindle configurations and a wide array of automation options to optimize the heat treating process. This flexible system can be configured to perform various heat treating operations such as scanning and single-shot. The material handling options for the Inductoscan® induction heat treating scanning system; manual, robotic, pick and place, rotary table and linear transfer.

REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

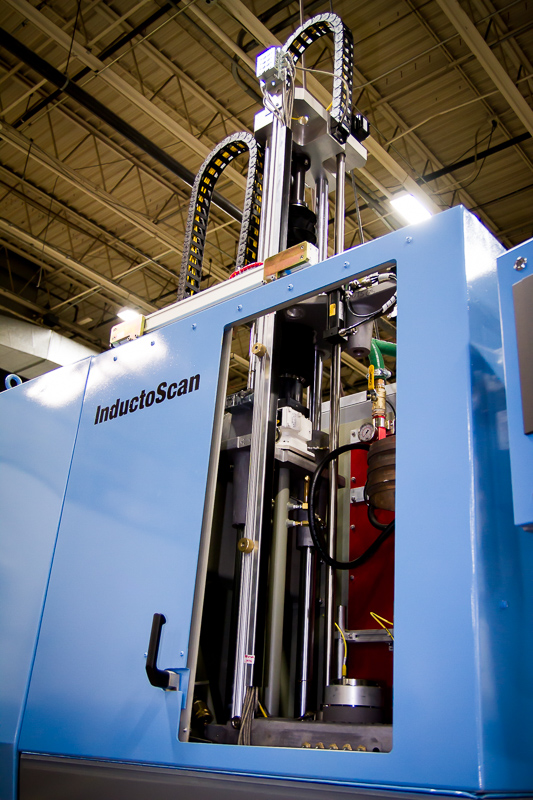

  • One or two spindle, vertical-scanning precision induction hardening machine
  • Enclosed water cooling and quench recirculation system with filtration for quieter operation
  • Water cooling recirculation system
  • Common machine base
  • User friendly controls simplify set-up, changeover and trouble-shooting, includes PLC with industrial computer operator interface
  • Pneumatic controls (optional)
  • Standard process monitoring package

Tech Specs

Standard Power Ratings 100 – 800 kW @ 100 – 400 kHz (w/optional side power supply) 100 – 450 kW @ 3, 10 and 30 kHz, 75 – 300 kW @ 50 kHz 50 – 150 kW @ 200 kHz
Dimensions 105”W (2667 mm) x 75”D (1905 mm)
Tower Span Length 44” (1120 mm)
Maximum Part Length 40” (1000 mm)
Scanning Speed (Max)/sec 10” (200 mm)
Door Dimensions 22”W (559 mm) x 42”H (1067 mm)
Work piece Capacity/Spindle 100 lbs. (45 kg) per spindle
Spindle Center Spacing 10” (254 mm)
Height Tower Up 148”(3759 mm)
Height Tower Down 86” (2200 mm)
Standard Controls Standard PLC with HMI interface with virtually unlimited program recipe storage

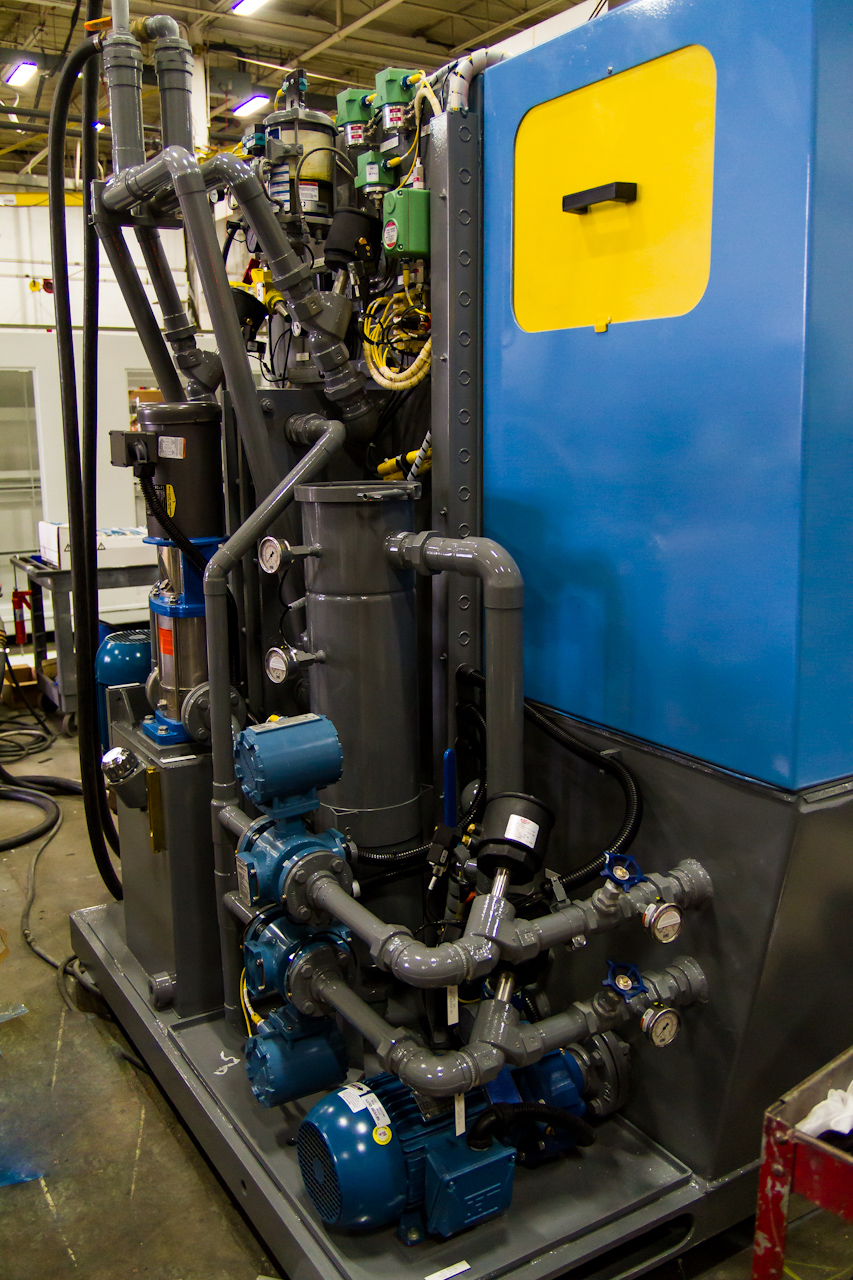

Cooling system Closed-loop water recirculating systems with stainless steel tank, stainless steel plate heat exchanger, non-ferrous pump and plumbing

Accessories

  • High-pressure booster pump for coil cooling
  • Quick disconnects
  • Servo motor and gearbox driven ball screw for precision movement
  • Instachange bus adapters
  • Process monitoring signature package
  • Process data archiving
  • Pneumatic door
  • Pneumatic load assist vees
  • Automatic lubrication system
  • Quench filtration upgrade
  • Robotic interlock package
  • 6 Axis 20kg robot
