Statiscan® IV Induction Heat Treating Scanning System

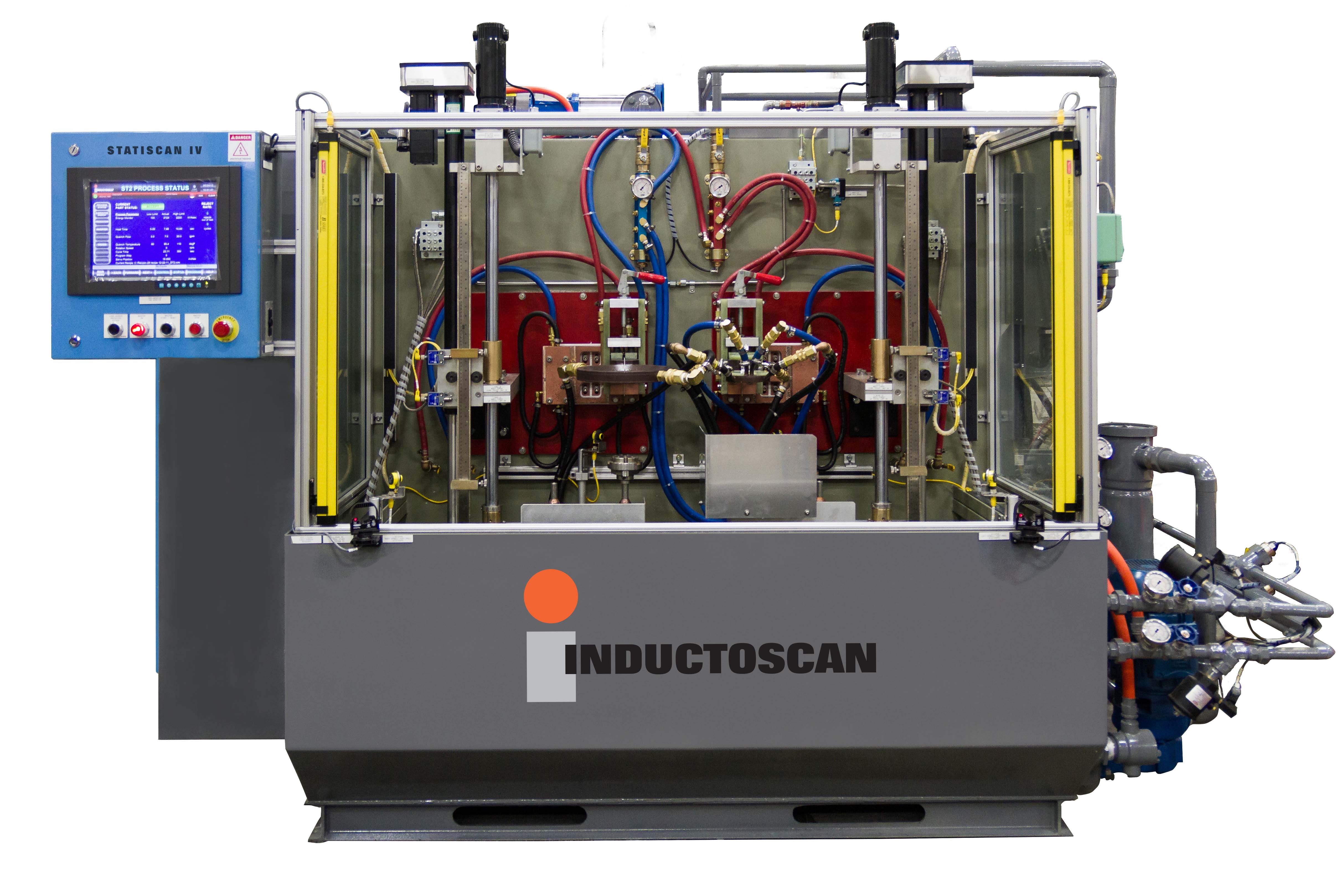

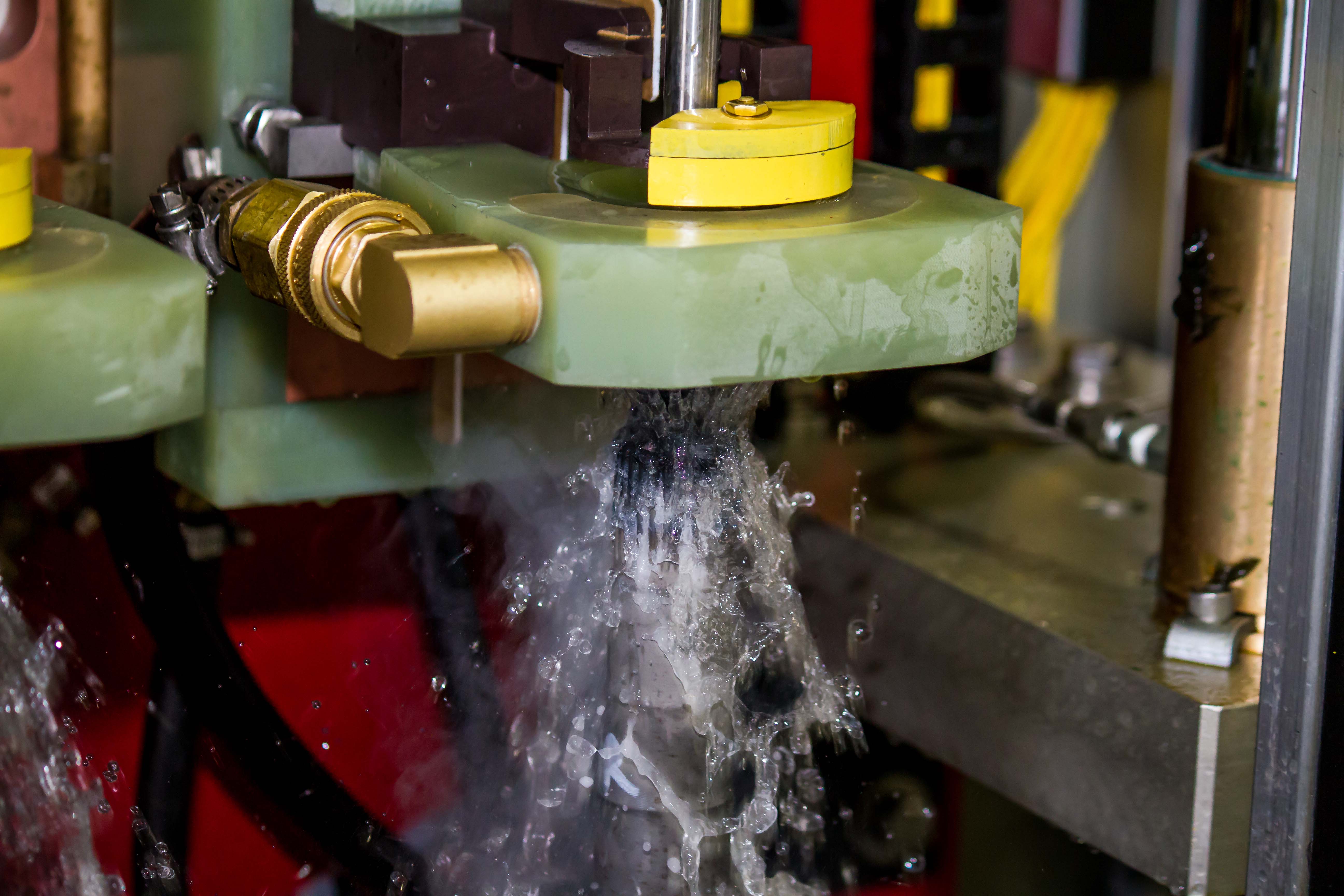

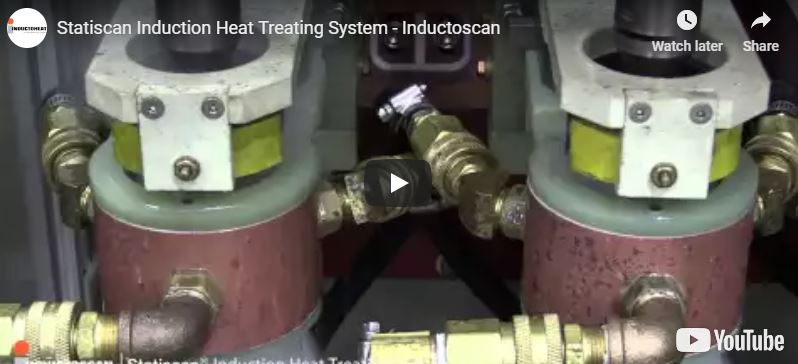

The Statiscan® IV Induction Heat Treating Scanning System is a unitized vertical hardening system with four standard scanning spindles. This flexible platform is designed for medium duty heat treating and tempering of various parts and applications. This system can be configured for multiple heat treating operations such as; scan, single-shot, lift/rotate and linear transfer.

REQUEST A QUOTE »

Inductoheat

32251 North Avis Drive, Madison Heights, MI 48071

Features

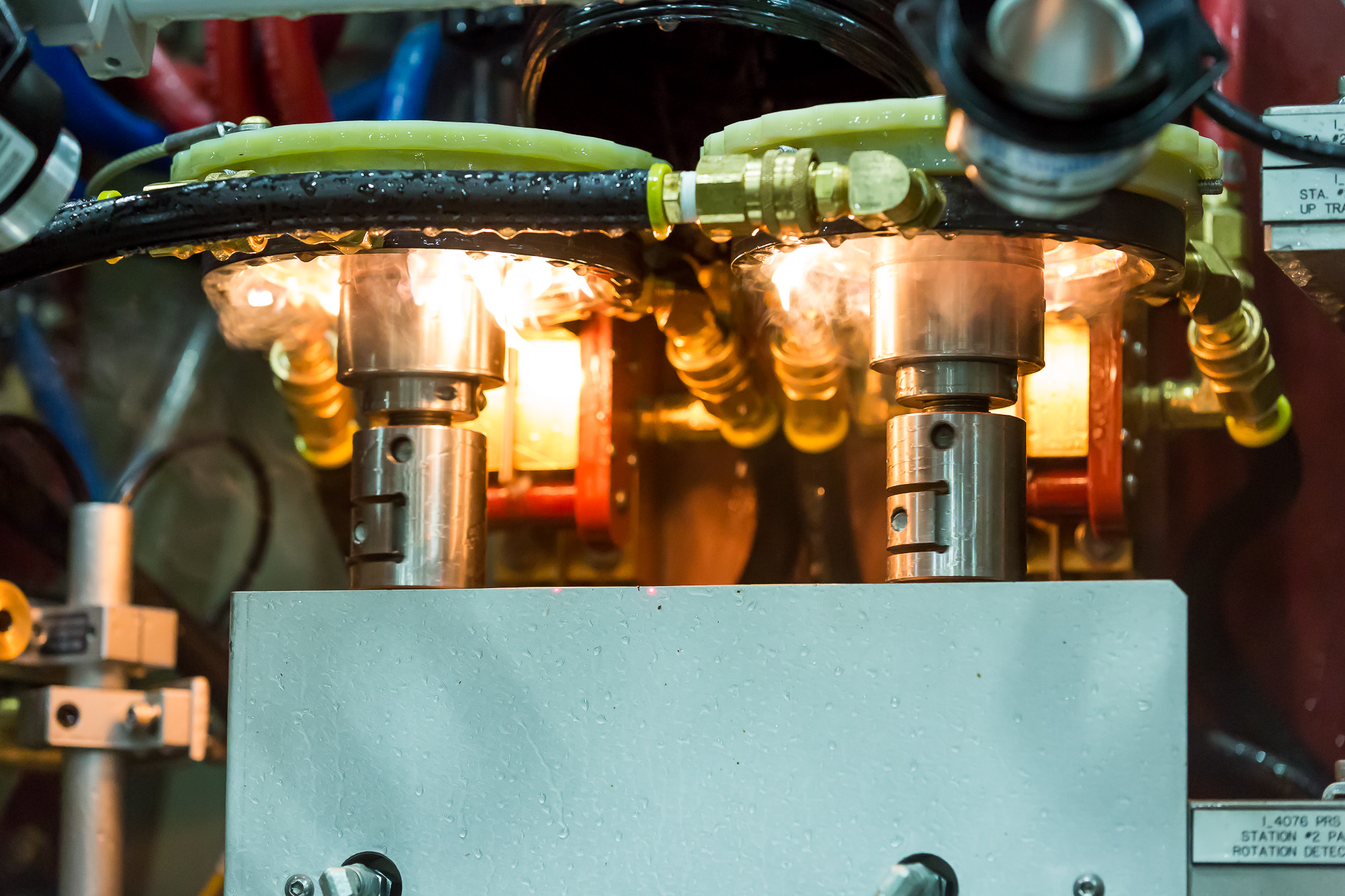

  • Two to four spindles to process two to four parts at a time
  • Scans part lengths of 30 in., with maximum scan heated length of up to 24 in. on standard model
  • Self-contained, compact design for minimal floor space and ideal for work cell
  • Different power ratings and frequency ranges available for application matched precision hardening
  • User-friendly controls simplify set-up, changeover and diagnostics
  • Enclosed water cooling and quench recirculation system with filtration for quieter operation
  • Built to machine tool standards for reliable performance
  • Simple utility connection for fast installation and relocation

Tech Specs

Standard Power Ratings 50-300 kW @ 10-200 kHz
Dimensions 124” (3150 mm) W  X 74” (1880 mm) D  X 98” (2489mm) H
Tower Span Length 28.5” (724 mm)
Maximum Part Length 27” (686 mm)
Scanning Speed (Max)/sec 8”/sec
Work piece Capacity/Spindle 22 lbs. (10 kg/spindle)
Spindle Center Spacing 8″ (203 mm)
Height Tower Up 103″ (2616 mm)
Height Tower Down 90″ (2286 mm)
Standard Controls Standard PLC with HMI interface with virtually unlimited program recipe storage
Cooling system Closed-loop nonferrous reservoir, heat exchanger, and recirculating system with centrifugal pump

Accessories

  • High-pressure coil recirculating pump system
  • Insta-Change coil adapter
  • Servo driven actuators for precision movement
  • Interchange bus adapter
  • Process monitoring signature package
  • Process data archiving
  • Pneumatic load assist vees
  • Pneumatic upper centers
  • Automatic lubrication system
  • Quench filtration upgrade
  • Robotic interlock package
  • 6 Axis 20kg robot
